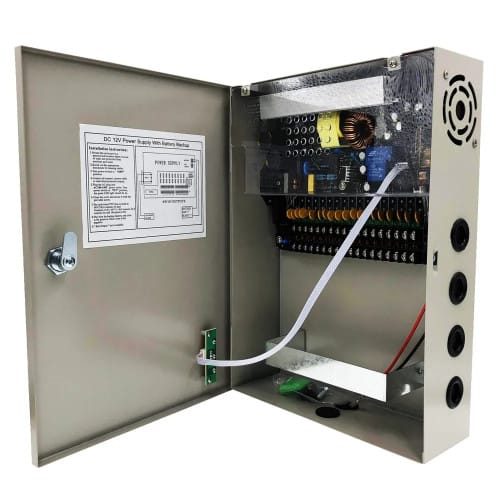

12v 20a 18 channel power switch mode power supply cctv ups uninterruptible power supply
12v 20a 18 channel power switch mode power supply cctv ups uninterruptible power supply
SKU:1004531
Out of stock
Product details:
DC Output:
DC Voltage: 12V
DC Current : 20A
Ripple & Noise: 80MV
DC Adjustable Range: ᅡᄆ10% Rated Voltage
Voltage Tolerance: ᅡᄆ2.0%
Line Regulation: ᅡᄆ0.5%
Load Regulation: ᅡᄆ1%
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC Input:
AC Voltage Range: 85-264VAC
Frequency Range: 47-63Hz
Efficiency:>85%
AC Current: 0.86/115V 0.4A/230V
AC Inrush Current: 20A/115V 40A/230V
Leakage Current< 0.5mA /240VAC
Protection:
Over-load: 105%-150% hiccup mode,Auto-recovery
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
Over-temp. : Shut down O/P voltage, Auto-recovery
Environment:
Working temp.: -10~ +60Cᅡᄚ (Refer to output load derating curve)
Working Humidity:20 ~ 90% RH, non-condensing
Storage Temp.: -10~ +60Cᅡᄚ
Storage Humidity: 10 ~ 95% RH
Safety:
Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25Cᅡᄚ/ 70% RH
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Safety standards: CE,RoHS,FCC
