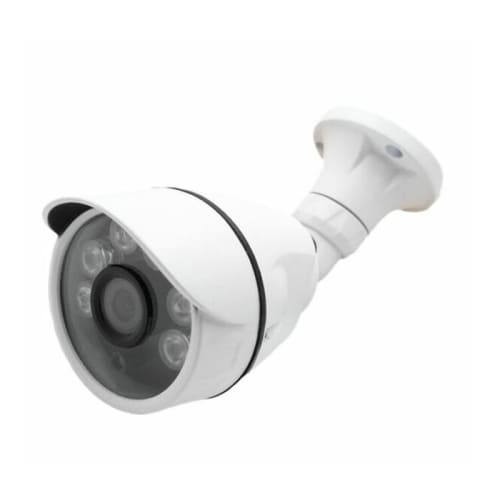

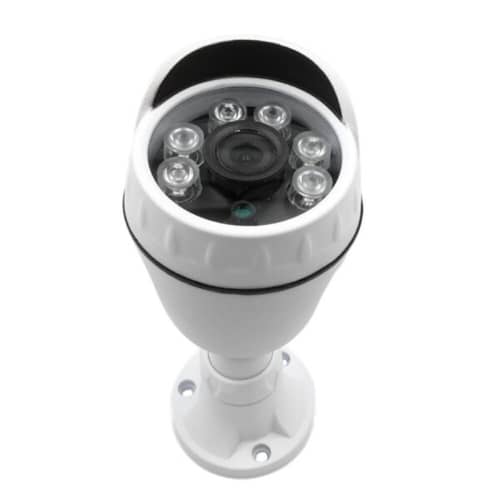

HD CCTV Camera with Infrared

Support 1080P 4 IN 1 video output ( CVI / TVI / SDI / CVBS) ,default setting AHD video output.

Support 3.6mm lens

Support Waterproof IP66

Support 20m IR distance

Support IR night vision

AHD Camera Specifications:

Sensor: 1/3 inch SC2135 sensor

Minimum Illumination

Color:0. 1Lux,(F1.2,AGC ON),0Lux with IR

Black & White:0.01Lux,(F1.2,AGC ON),0Lux with IR

Photosensitive Resistance: 1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage

Shutter; 1/50(1/60) seconds to 1/10,000 seconds

Day and Night Function: Support IR-CUT

Infrared light: 24pcs IR Leds(bullet)/18pcs IR leds(dome)

Lens: 3.6mm

Synchronous Mode: inter-sync

Noise-signal Ratio: >58dB

Temperature and Humidity: 10C ~ 60C, humidity is less than 90% (no condensation)

Power: DC12Vￂﾱ10%

Consumption: <5W

Housing material: Metal

ￂﾠ

Package Weight: 318g

Package Dimension: 10cm x 15,7 x 8,2 (L x W x H)

Package Includes:

1 x HD Camera

1 x Screws Kit

1 x User Manual
