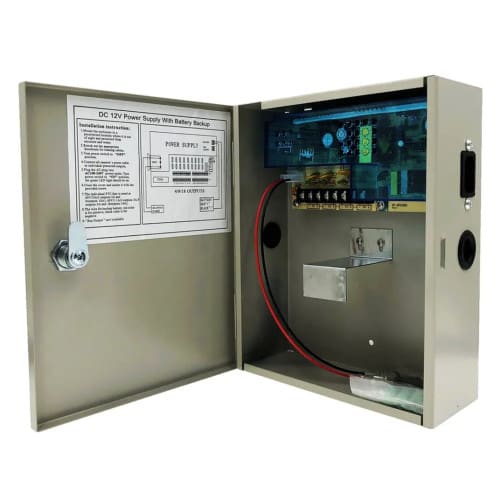

Uninterruptible power supply DC12V power supply 5A 4-channel output access control ups
Uninterruptible power supply DC12V power supply 5A 4-channel output access control ups
SKU:1004360
Out of stock
Product Details:
DC voltage: 12V
DC current: 5A
Ripple and Noise: 80MV
DC adjustable range: ᅡᄆ10% of rated voltage
Voltage Tolerance: ᅡᄆ2.0%
Line regulation: ᅡᄆ0.5%
Load regulation: ᅡᄆ1%
Setup, rise time, hold time: 200ms, 50ms, 20ms/230VAC
AC voltage range: 85-264VAC
Frequency range: 47-63Hz
Efficiency: >85%
AC current: 0.86/115V 0.4A/230V
AC surge current: 20A/115V 40A/230V
Leakage current < 0.5mA /240VAC
Protect:
Overload: 105%-150% hiccup mode, automatic recovery
Overvoltage: 115%-135% cut off output, automatic recovery
overheating. : Shut down O/P voltage, automatic recovery
environment:
Working temperature: -10~+60Cᅡᄚ (refer to output load derating curve)
Working humidity: 20 ~ 90% RH, non-condensing
Storage temperature: -10~ +60Cᅡᄚ
Storage humidity: 10 ~ 95% RH
Safety:
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC / 25Cᅡᄚ/ 70% RH
Withstand voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Safety standard: CE, RoHS, FCC, ISO9001
