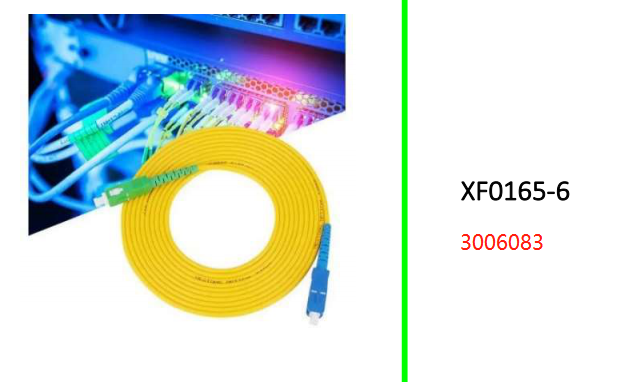

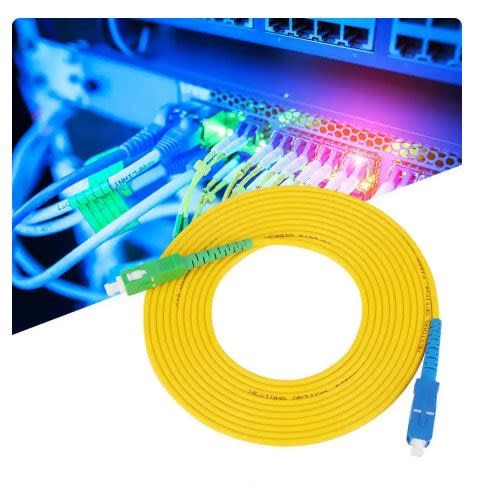

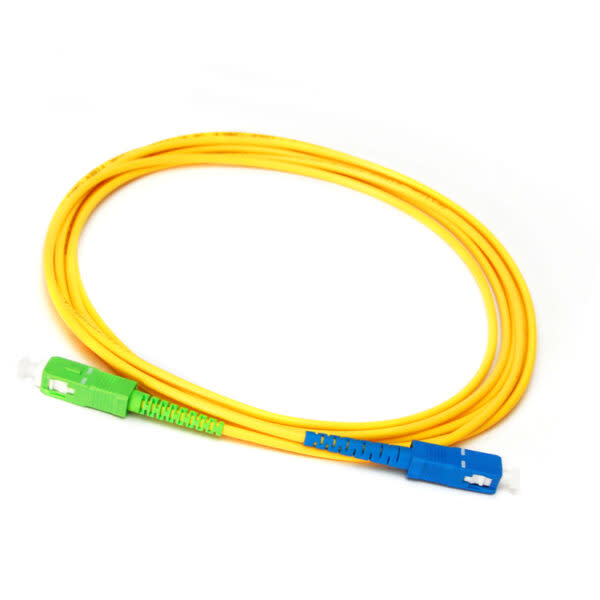

SC/APC LC/UPC Simplex Single Mode Fiber Optic Patch Cord 2.0mm 5M

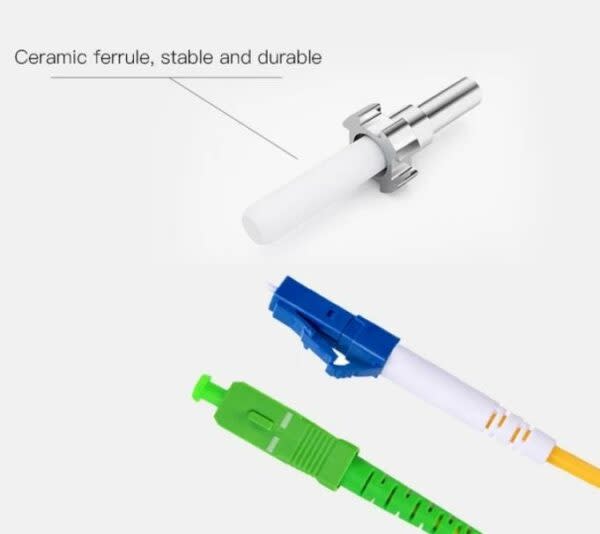

- 2.0 mm diameter patch cords are manufactured using ITU-T G657.A2 bend-sensitive optical fiber and then assembled into SC type on one end; with LC type connector on the other end

Insertion loss (IEC 61300-3-4-Method-B): ? 0.30 dB

Return Loss (IEC 61300-3-6-Method-B): ? 50 dB (UPC), ? 60 dB (APC)

Flammability: UL94 V-0

Operating temperature: -40°C to +85°C

Connector end geometry: IEC 61755-3

Packing weight: 22 grams

Packaging dimensions: 18cm x 18cm x 2cm

Package includes:

1 x simplex single mode fiber optic patch cord 5m
