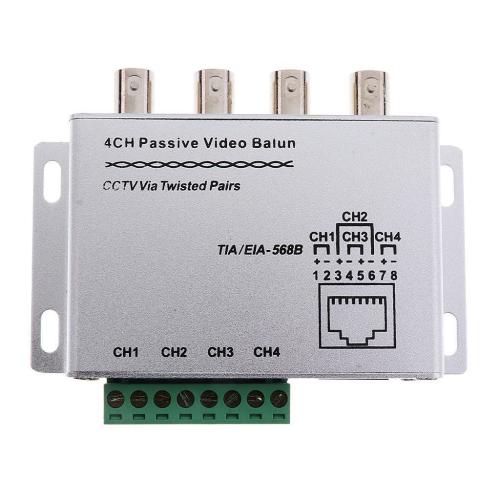

4-CH CCTV via Twisted Pair Passive Video Balun Transceiver

4-CH CCTV via Twisted Pair Passive Video Balun Transceiver

Fearues:

- Adipt differential signal transmission with excellent anti-jamming ability.

- Save project wire expenses,each a pair of twisted pair wire transmits one channel of video signal and one common cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal.

- Full-motion CCTV video at distances up to 300m when used with any passive UTP video transceiver.

- Up to 1500m with any active UTP video receiver.

- No power required.

- Built-in transient suppression protection

Technical Specifications:

Frequency response: DC-8MHZ

CMRR(Common Mode Rejection Ratio): 60DB

Impedance: BNC75; RJ45:100

Working temperature: 10¿-70¿

Storage temperature: 30¿-70¿

Applicable to NTSC,PAL,SECAM,and CCIR systems

External dimension: 103mm x 80mm x 27mm(excluding BNC)
