Safety LCD Digital Tire Pressure Tester Tyre Gauge Car Diagnostic Tool

Safety LCD Digital Tire Pressure Tester Tyre Gauge Car Diagnostic Tool

Product details:

Tire tread depth gauge

Range: 0 to 1 inch

Minimum Increment: 1/32 inch

Valve cores

Material: plastic

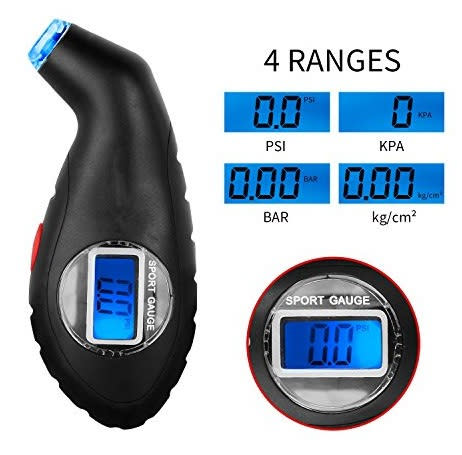

Digital tire pressure gauge

Minimum Increment: 0.5 PSI

Range:2-100PSI/0.15-7Bar/0.15-7Kgf/cm2 / 15-700 Kpa

Display:8.3 x 4 Inches LCD display

Power:3V Lithium coin cell Included

Operating Temperature: -5~50°C / 23~122°F •LCD backlit display

Using Instructions

Tire tread depth gauge

1.Push the measuring scale into the gauge as far as it will go

2.Place the probe into the center of a circumferential tire groove and push down on the gauge’s base

3.Carefully remove gauge by holding its barrel (without touching the probe) and confirm the tread depth reading

4.Place the probe into additional locations around the central circumferential tire groove at least 15 inches apart

Digital tire pressure gauge

1. Press the”ON/UNIT/OFF”button. Wait for the gauge to display zero on the LCD screen

2. Place the nozzle of the gauge on the tire valve. Press firmly to ensure a good seal and prevent air escaping

3. Hold gauge on the valve until the threading on the LCD display locks. Remove the gauge to easily see the pressure reading

4. To retake the pressure, repeat the previous steps

5. Tire gauge will automatically shut off shortly after use. Gauge can be manually turned off by holding the “ON” button down for more than 3 seconds
