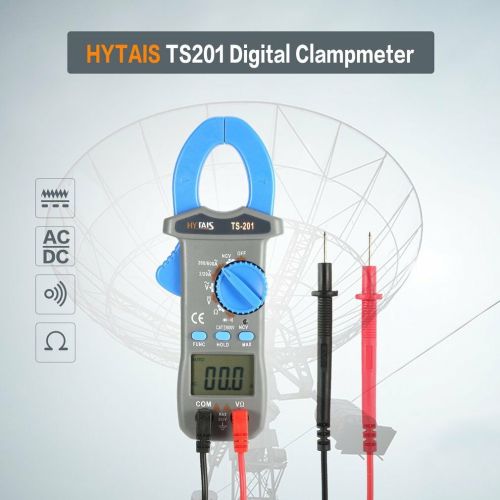

Digital Clamp Meter 600A Auto Range Multimeter Voltage Teste

Digital Clamp Meter 600A Auto Range Multimeter Voltage Teste





Features:

Wide Test Range: Measurements including Voltage, AC Current, Resistance.

Professional Level: Its features includes True RMS for accurate AC current and voltage readings. Also includes auto-ranging for faster and more accurate results.

Data Hold: It is often easier to use the data hold function to freeze the data being displayed on the digital LCD display.

Advanced Large Clamp: 2000 counts for AC current 600A. Clamp opening is up to 25mm.

Non contact voltage detection: NCV function helps to test voltage quickly and convienctly without contact.



Specifications:

Brand: HYTAIS

Model number: TS201

Item name: Digital Clampmeter

Color: gray & blue

Material: Plastic

Clamp opening: 25mm

Automatic range: Yes

LCD display: 3 1 / 2 digits 2000 count

NCV non-contact voltage detection function

600V input protection

Automatic shut-down

Maximum Hold (MAX) function

Data Hold (HOLD) function

AC current measurement range: 0.1-600A

AC Current (A): 2A 20A 200A/600A ±(2.5%+5)

AC Voltage (V): 2V/20V/200V/600V ±(1.2%+2)

DC Voltage (V): 200mV/2V/20V/200V/600V ±(0.8%+2)

Resistance (Ω): 200/2K/20K/200K/2M/20MΩ ±(1.2%+5)

Process display: 0L

Input impedance: 10M

Test frequency: ACA: 50Hz-60Hz; ACV: 40Hz-400Hz

Power supply: 3V AAA battery * 2 (not included)

Overload protection: resistance/diode maximum input 250V DC or AC

Ambient temperature: 5°C-35°C

Storage temperature: -10°C-50°C

Product size: 178 * 70 * 25mm / 7 * 2.8 * 1in



Package List:

1 x TS201 Digital Clampmeter with Hanging Rope

1 x Pair of Test Leads

1 x User Manual

1 x Carrying Bag
