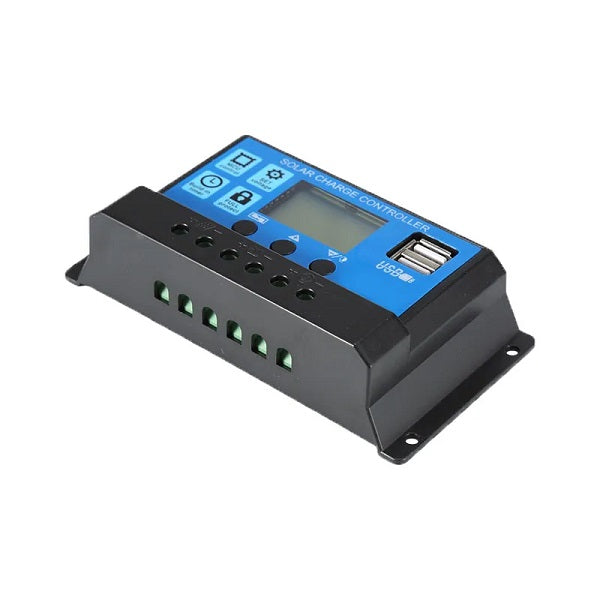

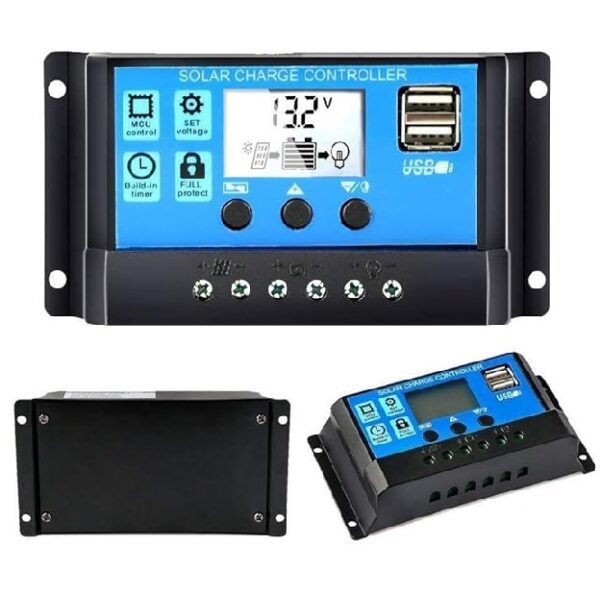

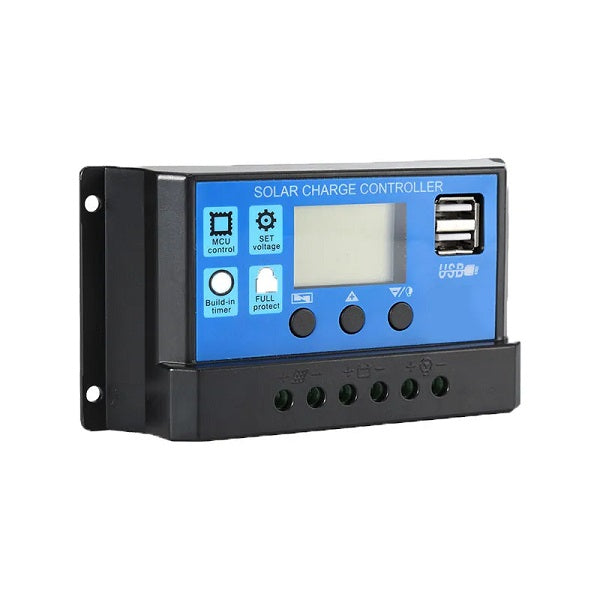

-Solar Charge Controller Dual USB Output with LCD Display, PwM Battery Charging. Adjustable Controlling Parameters of System -Solar controller 20A-12V/24V Automatic identification of general purpose household power generation home system controller -Charging Current: ,20A Depending on model -Discharging Current: 20A -Max PV Voltage: 50V -Max PV Input Power: 260W(12V)520W(24V) -Max Solar input 12V System Equalization 14.4V(Sealed) 14.2V(Gel) 14.6V(Flood) -Float charge 13.7V(defaul,adjustable) -Discharge stop 10.7V(defaul,adjustable) -Discharge reconnect 12.6V(defaul,adjustable) -USB output 5V/2A -Mounting holes pacing 147mm60mm -Temperature -35 C~+60 C -Storage temperature -40 C-70 C -Industrial level main control chip is adopted -Large LCD display, adjustable charging and discharging parameters -Complete 3 phase PWM charging management -Built-in overcurrent/short circuit protection, open circuit protection and reverse connection protection, all of which are self-restoring and will not damage the controller -Double MOS anti-backflow circuit, ultra-low heating value
